Hook-mount acoustic wall panels, 2 × 2 and 2 × 4 ft
Modular impact-resistant panels for acoustic and light control
PU foam on a rigid PVC backer, wrapped in ballistic nylon. Mounts on 3M adhesive hook with no brad nails or fasteners.
At a glance
- Layer
- Side walls
- Category
- Acoustic panels
- Brand
- TruSim Systems
- Availability
- Available
Specifications
- Sizes
- 2 × 2 ft and 2 × 4 ft; custom on request
- Core
- PU foam, 0.98 in, 1.87 lb/ft³
- Backer
- PVC board, 0.118 in, 46.8 lb/ft³
- Wrap
- Ballistic nylon; faux leather optional
- Mounting
- 3M adhesive-backed hook
TruSim Systems’ Acoustic Wall Panels are modular, impact-resistant wall treatments designed for clean installation, improved acoustics, and long-term durability in golf simulator enclosures. Built with a rigid PVC backer, high-density PU foam core, and wrapped in abrasion-resistant ballistic nylon, these panels mount cleanly using industrial-grade 3M adhesive hook — eliminating permanent fasteners and reducing install time.
Panel construction
| Layer | Material | Density | Thickness |
|---|---|---|---|
| Acoustic core | PU foam | 1.87 lb/ft³ | 0.98 in |
| Rigid backer | PVC board | 46.8 lb/ft³ | 0.118 in |
Fabric wrap
Panels are wrapped in ballistic nylon as standard. This fabric is highly abrasion-resistant, tear-resistant, and designed for high-wear environments. Optional fabrics such as faux leather may also be specified.

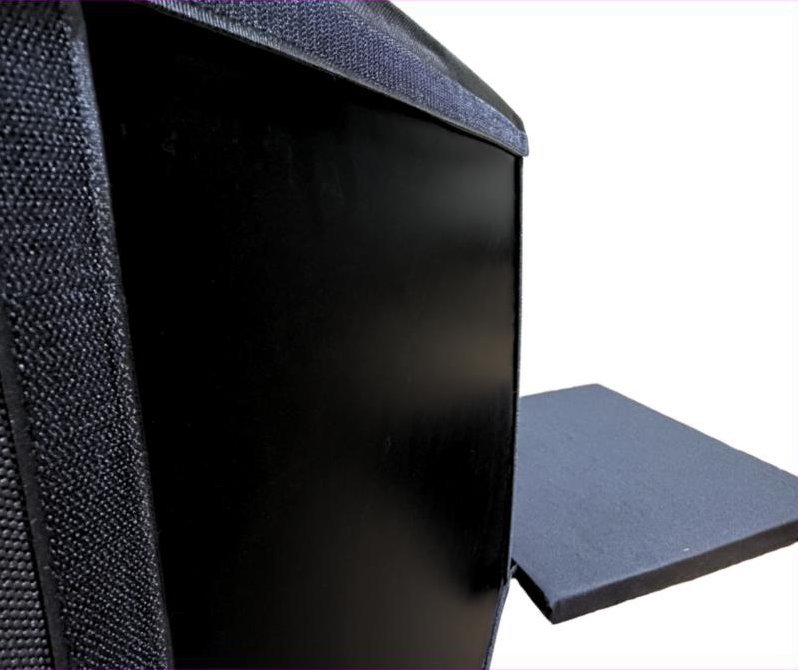

Mounting method
Panels mount using industrial-grade 3M adhesive-backed hook. This system provides superior long-term adhesion compared to generic hook-and-loop products and allows panels to be installed without brad nails or permanent fasteners.
Common panel sizes
- 2 ft × 2 ft
- 2 ft × 4 ft
- Custom sizes available
Applications
These panels are ideal for both residential and commercial golf simulator enclosures where durability, simple installation, and clean aesthetics are critical.
Frequently asked questions
Why use modular panels instead of onsite foam installation?
Modular panels eliminate the need for brad nailing or stapling, prevent fabric damage, and allow panels to be replaced or repositioned without damaging walls.
Are these panels impact-resistant?
Yes. The rigid PVC backer and ballistic nylon wrap are designed to withstand incidental ball contact and high-wear environments.
Will the adhesive fail over time?
We specify industrial-grade 3M adhesive-backed hook because it has proven long-term adhesion performance, unlike generic alternatives.
Can panels be removed or replaced later?
Yes. Panels can be removed and replaced without damaging the wall surface when installed correctly.
Do these panels help with sound and light control?
Yes. The PU foam core absorbs reflected sound while the dark fabric exterior reduces light reflections and visual distractions.
Fire retardancy disclosure
This product has not been tested or certified to meet any fire-retardant (FR) standards. TruSim Systems makes no claims regarding fire performance, sprinkler interaction, or code compliance. Material approval should be reviewed with the local Authority Having Jurisdiction (AHJ) where required.
Why TruSim Systems
- Engineered by textile professionals
- Custom-built, not mass produced
- Backed by Canwil Textiles’ supply chain and expertise
- Designed for installers, not hobbyists
Need a drawing or data sheet? Send your size code or room dimensions to [email protected] or call 678-985-5434.
This product has not been tested for PFAS unless stated otherwise above.
