LT and XT Systems
The frame is the aluminum structure the panels and screen attach to. The LT and XT Systems differ only in that structure. Panels, screens and interior sizes are identical, so a size you plan on one works on the other. Both are made to order today; standard LT sizes are coming soon.
LT System
2 in round aluminum tube. Residential and light commercial.
LT System details →XT System
100 mm square aluminum truss for commercial venues and multi-bay rows.
XT System details →Side by side
| LT System | XT System | |
|---|---|---|
| Frame profile | 2 in round aluminum tube | 100 mm square aluminum truss |
| Material | 6061-T6 aluminum | 6061-T6 aluminum |
| Best for | Homes, studios, single bays | Venues, clubs, multi-bay rows |
| Panel module | 600 mm | 600 mm |
| Panels, screens, interior | Shared | Shared |
| TruRamp at the screen base | TruRamp for LT, 51 mm | TruRamp for XT, 102 mm |
| Connections | Patent-pending quick-connect | Patent-pending quick-connect |
| Equipment boom | Same boom | Same boom |
Reading a size code
A size code names the frame system and the size of the bay in panels. In LT-14-D6-H9, LT is the frame, 14 the width, D6 the depth and H9 the height, each counted in 300 mm half-panel units. Everything in the order follows from the code: the number of panels, the frame lengths and the screen dimensions. Send us the code and we can quote the whole bay without a site visit.
Depth is always sold by panel count, never as a nominal number of feet, because a wall is a whole number of panels.
Works with both frames
Custom impact screens
Built to your exact width, up to 10 ft tall, finished with grommets, hook-and-loop or a bottom pocket.
Details →

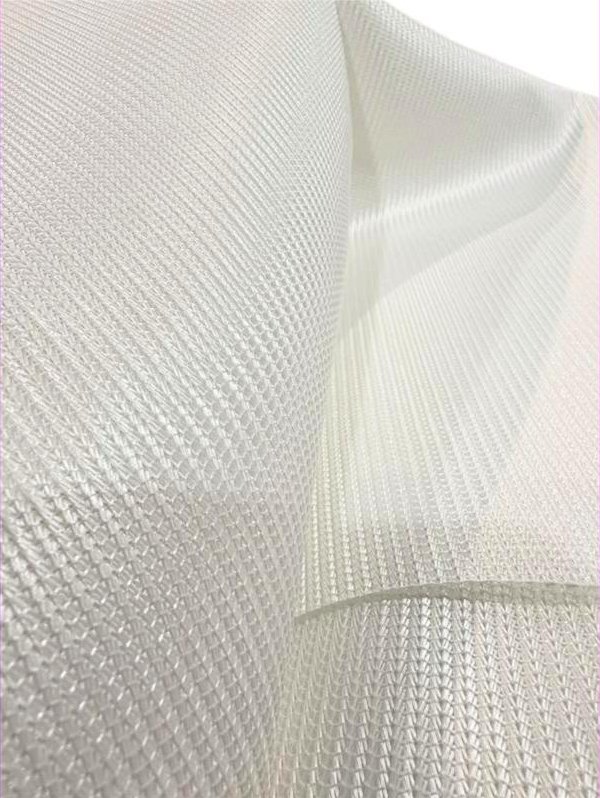

TruBack™ Performance Backer
Sits behind the screen to take the energy out of the ball before it reaches the wall.
Details →

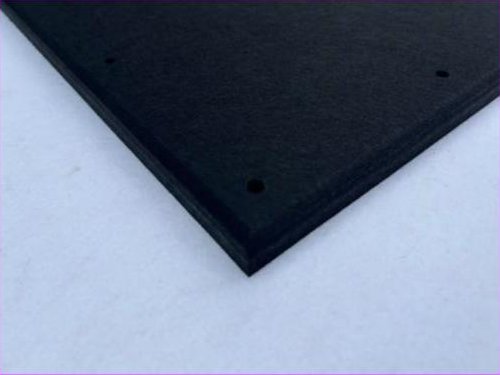

Acoustic wall panels
600 × 600 and 600 × 300 mm panels that bolt to the frame, four fixings each. Never cut on site.

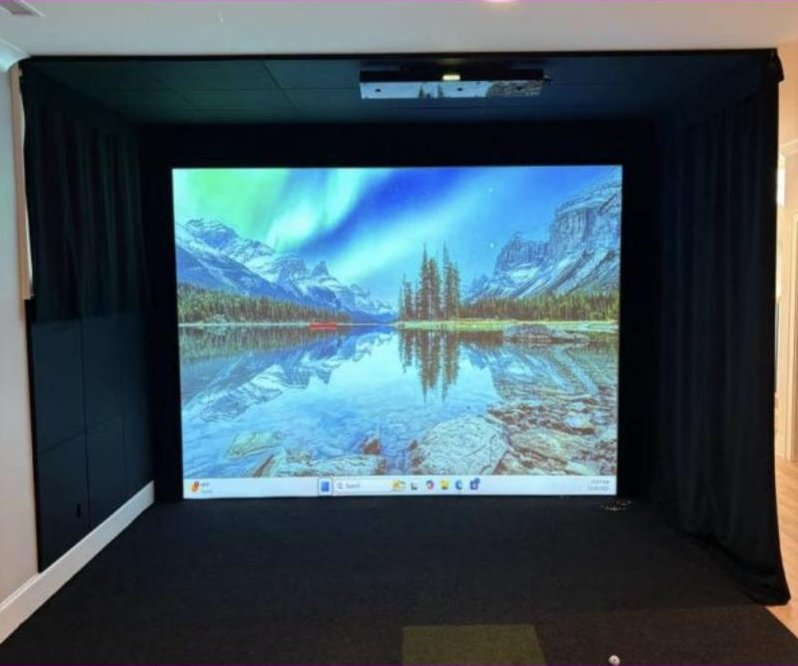

Performance drapes
Velour, velvet and performance polyester drapes in 15 and 22 oz, cut and sewn in-house. They quiet the bay, block stray light and finish the room.
Details →Extendable equipment boom
Runs front to back on top of the cage, clamped to the crossbars above the panel plane, and telescopes out past the frame. Carries the projector and launch monitor clear of the ball. One boom fits both LT and XT.
Details →Mounting hardware
Slot nuts, compression sleeves and bolts. Panels bolt on from inside the bay, with no overhead work.
Details →
